Military-grade run-flat inserts designed from high-performance composite materials. Keep absolute steering control, avoid deadly rollovers, and continue driving at high speeds even after ballistic impacts or sudden blowouts.
Product Description
The Vehicle Explosion-Proof Tire Safety Device (also known as a ballistic run-flat tire insert) is engineered utilizing advanced, high-performance lightweight polymer composite materials and specialized proprietary manufacturing techniques. In modern transport security, sudden tire pressure loss due to punctures, hazardous terrain, or ballistic strikes represents a critical point of failure. This mechanical core support structure mitigates that danger completely.
Our heavy-duty bulletproof tire solutions exhibit exceptional mechanical metrics including superior anti-compression, high anti-friction, high impact resistance, and extreme weather adaptation parameters ranging from desert heat to sub-zero environments. Designed as a split-ring configuration, it locks directly onto the standard wheel drop-center rim, ensuring that when the tire deflates, the vehicle weight is seamlessly transferred onto the safety device, preserving immediate maneuverability, directional control, and operational driving capability.
Key Product Features
- Advanced Special Polymer Materials: Engineered with micro-molecular cross-linked polymers providing optimized load-bearing structure, small footprint volume, minimal added unsprung weight, and extreme abrasion resistance.
- Multi-Splice Modular Architecture: Features an adaptable structural design that allows for repeated assembly and disassembly over dozens of maintenance cycles. Built for longevity with a guaranteed operational life cycle exceeding 10 years.
- Zero Aesthetic & Functional Impact: Concealed fully inside the pressurized cavity of the tubeless tire on the wheel drop center. It does not alter original tire appearance, does not affect steering wheel geometry, and maintains standard dynamic wheel balancing parameters.
- Universal Tubeless Wheel Compatibility: Configurable design matrices allow tailoring for any standard wheel size profile. Can be seamlessly retrofitted into standard off-the-shelf tubeless rims without custom machining.
- All-Terrain and Speed Agility: Operates at peak performance regardless of topography and velocity thresholds. It provides structural safety across standard city roads, highways, and jagged off-road conditions, retaining complete tractive efficiency on 45-degree slopes, deep mud gullies, and mires.
Target Vehicle Applications
This heavy-duty explosion-proof tire solution is widely deployed across critical vehicle categories requiring guaranteed mobility under extreme situations:
- Tactical & Defense Logistics -
Light armored vehicles (LAVs), tactical personnel carriers, security escort vans, high-risk cash-in-transit (CIT) trucks, and military command assets demanding absolute ballistic mobility.
- Off-Road & Specialized Operations - VIP armored SUVs, emergency response vehicles, law enforcement patrol cars, search & rescue transport, and rugged off-road utility trucks traversing harsh industrial or mining environments.
Proven Safety & Performance Results
- Instant Rollover Mitigation: Eradicates the lethal risk of high-speed rollovers triggered by sudden tire blowouts or explosive kinetic impacts. The mechanical support guarantees immediate side-wall stability.
- Continuous Run-Flat Mobility: When single or multiple tires suffer catastrophic deflation or severe ballistic perforation, the vehicle is capable of continuing transit over a long operational distance to safely exit danger zones.
- Comprehensive Human & Asset Protection: Maximizes survivability profiles by maintaining steering wheel control and driveline integrity, ensuring crew and payload protection during critical emergency escape maneuvers.
| Technical Performance Metric | Specification Value Details |
|---|
| Material Formulation | Military-Grade High-Performance Composite Polymer |
| Service Life Span | ≥ 10 Years (Reusable Matrix) |
| Applicable Slope Traverse | Up to 45-degree angle incline stability |
| Wheel Rim Suitability | All standard international tubeless wheel variants |
| Terrain Adaptation | Highway, Desert Sand, Deep Mud, Gully, and Mire Crossings |
Assembling & Installation Procedure
Please follow these structured precision technical steps to ensure optimal alignment, performance compliance, and mechanical longevity:
 |  |
| Assembling | After installation |
- Step 1: Primary Tire Positioning

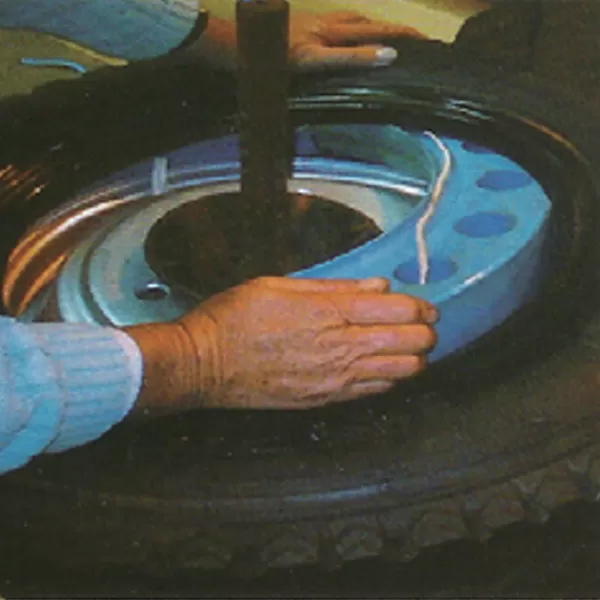

Mount the first side bead of the tubeless tire carefully onto the wheel nave drop-center section, leaving the top bead accessible. - Step 2: Half-Safety Device Alignment
Position the two half-safety component parts around the internal hub drop-center. Critical Directive: The wheel tire valve stem must be perfectly nested within the pre-engineered split joint gap of the two half-safety devices to prevent catastrophic structural shearing of the valve. - Step 3: Rigid Structural Fastening

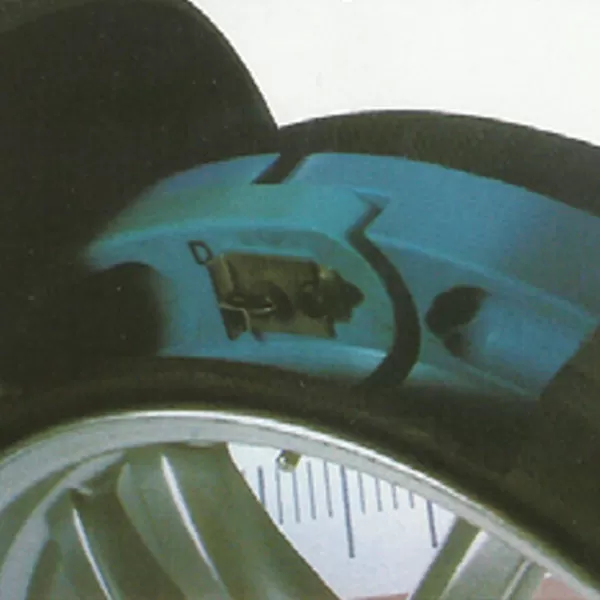

Thread the high-tensile alignment guide wire through the safety assembly. Ensure the anchoring structural bolt aligns smoothly through the dual-hole anchor tabs simultaneously. Fasten using the provided heavy-duty bolts, heavy industrial washers, and mechanical locking plate tabs to compress the dual halves tightly against the rim drop center. - Step 4: Anti-Loosening Wire Safeguard
Weave a high-grade fine locking wire directly through the head of the tightening bolt and the corresponding anchoring slot on the locking plate piece. This prevents any operational vibrations from causing bolt back-out or looseness during high-speed travel. - Step 5: Final Seating and Pressurization
Carefully guide the remaining outer tire bead over the rim wheel flange using proper automated tire fitting equipment. Inflate the tubeless tire chamber with clean air up to the exact pressure specifications mandated by the vehicle manufacturer.
TECHNICAL COMPLIANCE NOTE: Always install and deploy these safety inserts as a complete uniform set (covering all active axels) in accordance with original automobile manufacturing guidelines. Randomized, single-wheel, or mismatched configuration layouts are strictly prohibited.
